• Telescopic Upper Boom - Greater accuracy when positioning platform
  • Hydraulic Outriggers - For quick & easy setup
  • Fully Proportional Hydraulic Controls - Simple, reliable & easy to maintain
  • Bi-Energy Available - Optimizing utilization
  • Traction Drive Option - For improved maneuverability on site

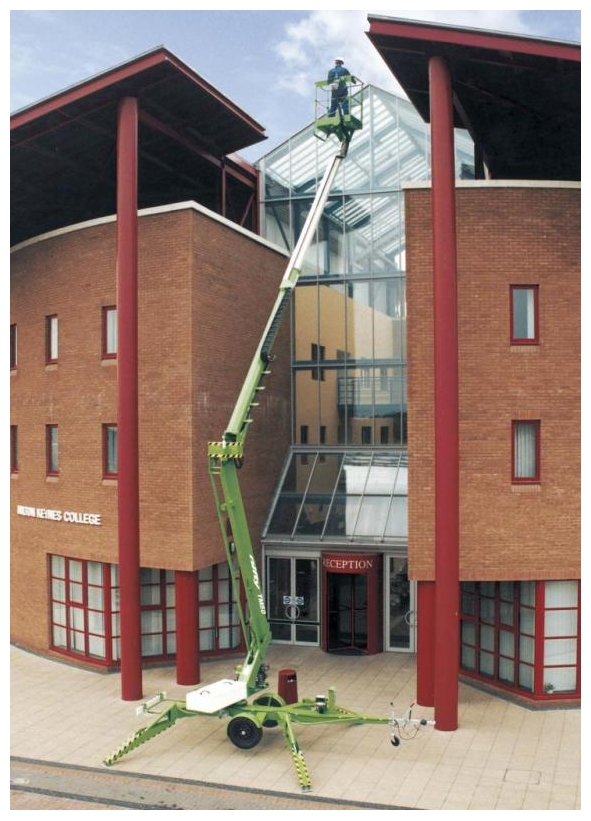

TM50

With one of the largest working envelopes in its class the TM50 trailer mount delivers maximum reach with stability and control. Octagonal boom sections provide the TM50 trailer mount strength without compromising on weight and the telescopic upper boom improves accuracy when positioning the platform.

Fully proportional hydraulic outriggers make setting up and levelling the TM50 trailer mount quick and easy even on gradients.

The TM50 trailer mount's outstanding reach makes it ideal for a wide range of applications. It's also available with a traction drive option that offers a simple, cost effective and safe method for on-site positioning.


Working Height 56ft Safe Working Load 500lbs
Platform Height 49ft 6in Working Outreach 28ft 6in
Machine Length 20ft 4in Machine Height 7ft
Outrigger Type Hydraulic Machine Width 5ft 5in
Cage Rotation Available Working Width 14ft 5in
Min Weight 4,760lbs Cage Size 3ft 7in x 2ft 2in
Power Options Mains Only, Battery Only, Gas or Diesel Only, Bi-Energy (Engine & Battery)

Download Full Specs Here

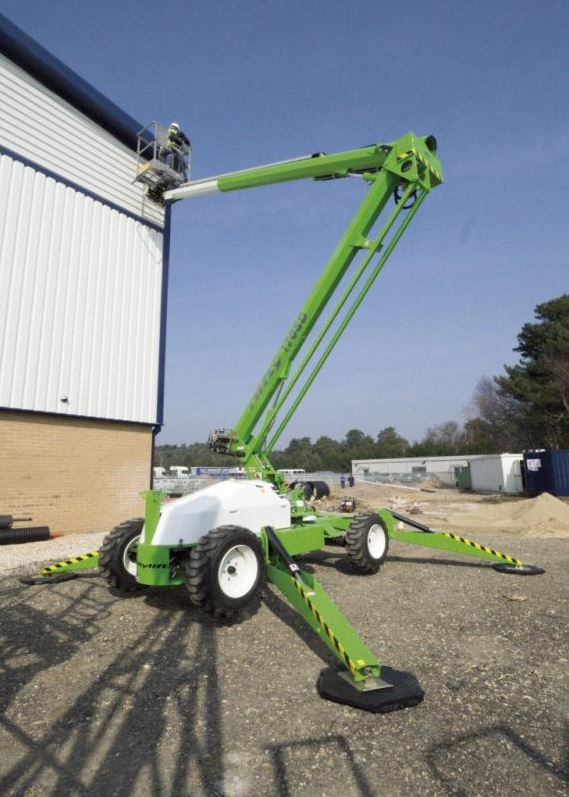

sd50SD50

The SD50 work platform combines the best of our self-propelled and trailer mounted ranges.

It offers the same impressive reach capabilities as the TM50 but with the versatility of a robust yet very lightweight drivable base.

This allows the operator to maneuver, set up and operate the SD50 work platform without leaving the platform, especially on uneven surfaces.

Rough terrain tires and 4WD as standard allow the SD50 work platform to maneuver easily over a wide range of site conditions and its outstanding reach makes it ideal for tree care or construction site work.


Working Height 56ft Safe Working Load 500lbs
Platform Height 49ft 6in Working Outreach 28ft 6in
Machine Length 18ft 4in Machine Height 7ft
Outrigger Type Hydraulic Machine Width 6ft 11in
Cage Rotation Available Working Width 14ft 5in
Min Weight 6,000lbs Cage Size 3ft 7in x 2ft 2in
Power Options Battery Only, Gas or Diesel Only, Bi-Energy (Engine & Battery)


Download Full Specs Here
